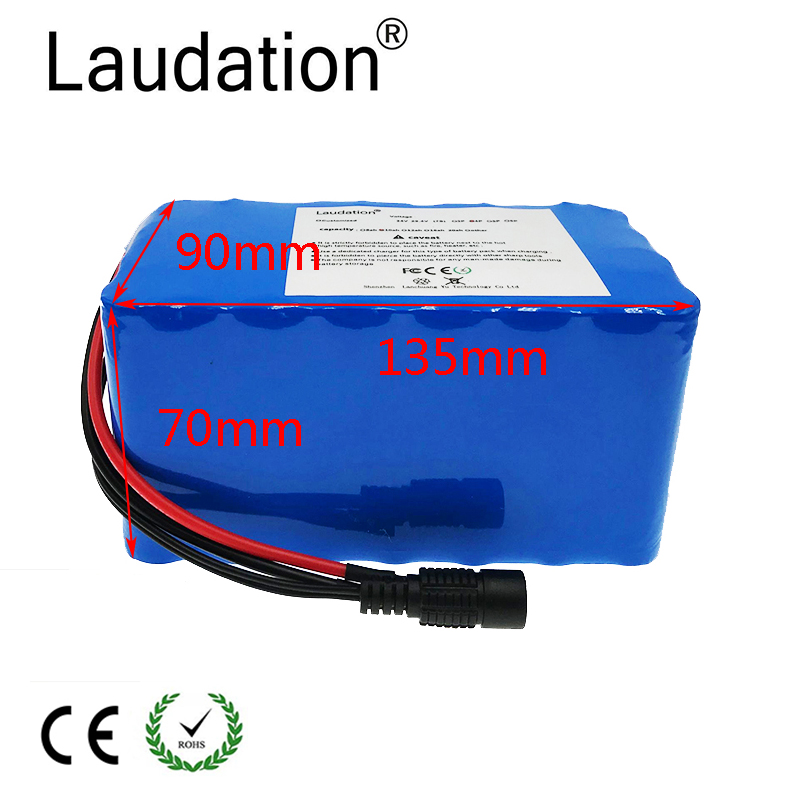

36V 10ah Electric bicycle battery

  • 36V 10ah battery pack
  • $ 145.0

Battery weight:







重量







Parts included:





1. 36 V 10ah lithium battery, built in 15a BMS.

​ 2. 42V 2A charger



Battery Parameters:



Battery Model: 36V 10ah

Rated capacity (ah):9.6ah

Rated voltage (V): 36 V

Resistance of the source of cells (MΩ): about 20 PTO)

Technical description: 3.7 V 3.2ah / 18650 Cell( Panasonic NCR-18650 BD )

Cell combination: 3-parallel 10-series

Battery size:40*70*280mm  (Manual measurement, there will be deviation)

Number of cells (parallel * series): 30 pcs.

Discharge voltage (V): 30 +/- 1 V

Charge voltage (V): 42 V

Rated discharge current (a): 15а

Instantaneous maximum discharge current (a): 30A

Maximum Continuous Discharge Current (A): 15a

Charge mode: CC / CV

Standard charge current (A): 2A

Charging time under Standard charge current: 4 h

Maximum Continuous Current Charge (A): 5A

Charging time with fast current charging: 2 h

Charge temperature range: 0-45 ° c

Range of discharge temperature: -20-60 ° c

Battery weight about: 1.7kg



Panasonic NCR-18650BD Specification
