24 V 10ah Lithium Ion Battery 29.4V 10ah 10000 mAh 15A BMS 250W 24V 350W Battery Pack for Wheelchair Motor Kit Power
We offer a variety of lithium batteries, oem, if you have any questions, please contact us!

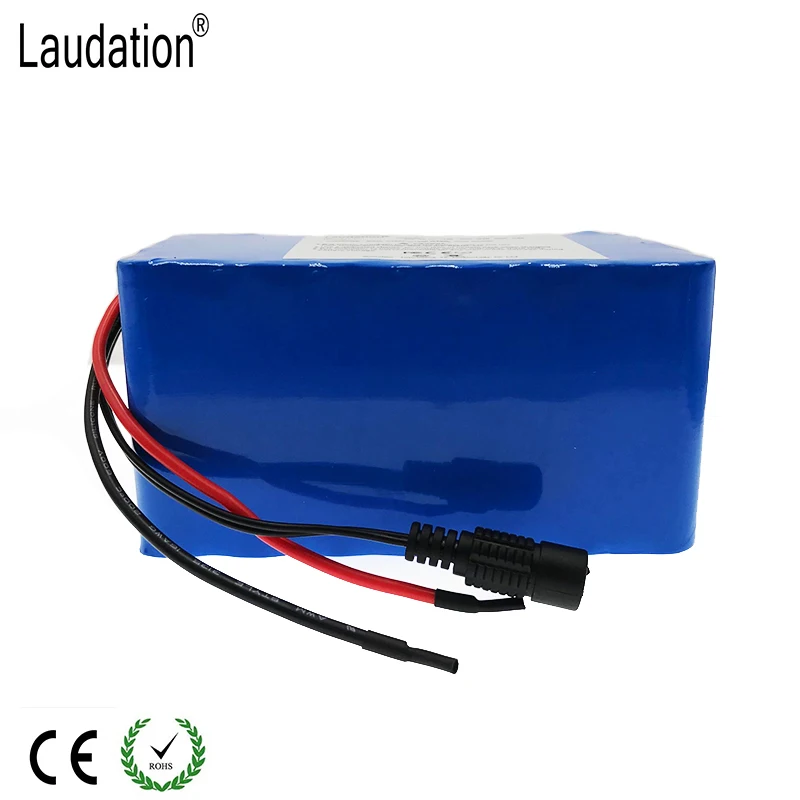

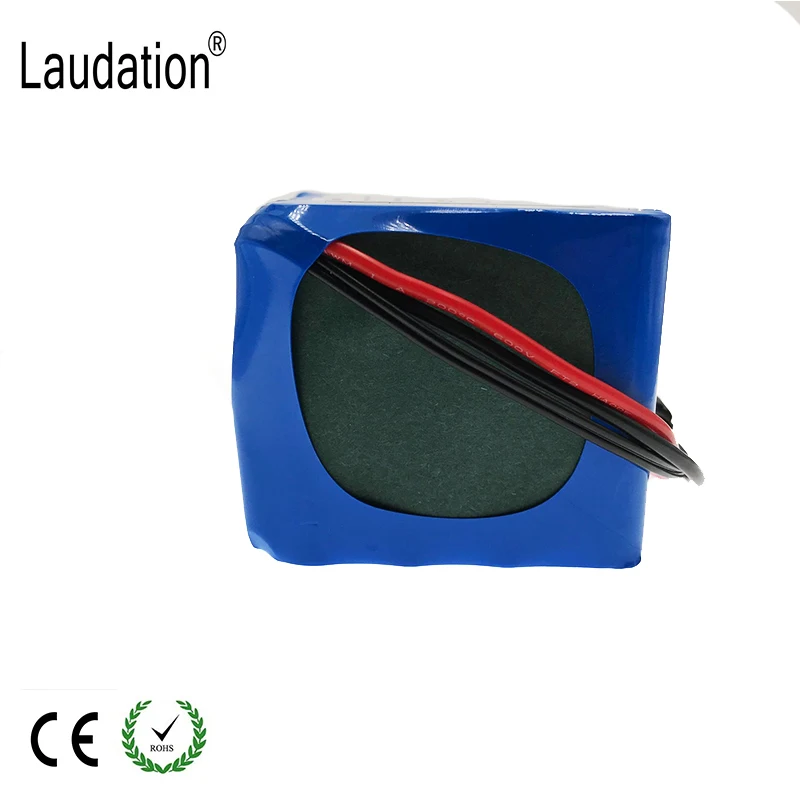

24V 10ah lithium-ion battery, PVC case, built-in BMS
Product specifications:
Battery type 24V10Ah
Rated capacity (ah) 10ah
Rated voltage (V) 24 V.
Discharge voltage (V) 20 +/- 1 V.
Charging voltage (V) 29.4 V.
Rated discharge current (a) 15а
Instantaneous maximum discharge current (a) 36a
Maximum continuous discharge current (a) 18A
Maximum constant charging current (a) 5A
Charging mode CC / CV
Standard charging current (a) 2A
Charging time under standard charging current (h) 6
Fast charging current (a) 3A
Charging time under fast charging current 3
Charging temperature range -20-60 ° C
Discharge temperature range -20-60 ° C

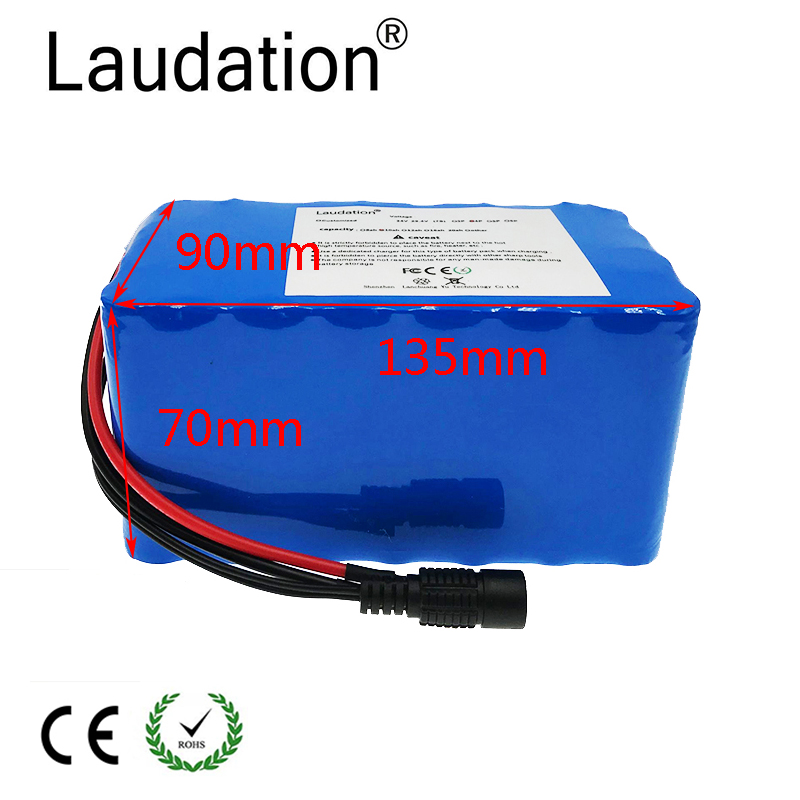

Battery size 135 * 90 * 70 mm (can be customized)
The battery weighs about 1.7 kg
Note: Photos are for reference only and the final size may not differ much.
Life cycle: more than 800 times
Package Contents:
1.1 pieces. 24 V 10ah battery with built-in smart bms protection board
Lithium ion charger specifications:
1. AC input voltage: 100-240 V.
2. Charging voltage: 29.4 volts.
3. Charging current: 2 amps.
