Parts include:
1. 36V 20AH lithium battery built-in 25a BMS*1
2.42V 2A High quality lithium battery charger*1
Battery parameters:
Battery model: 36V20ah
Rated capacity (ah): 19.2ah
Rated voltage (V): 36 V.
Output voltage range: 27.5v - 42v
Suitable for motor power:250W 350W 500W 750W
Battery resistance (MΩ): approx. 30 PTO)

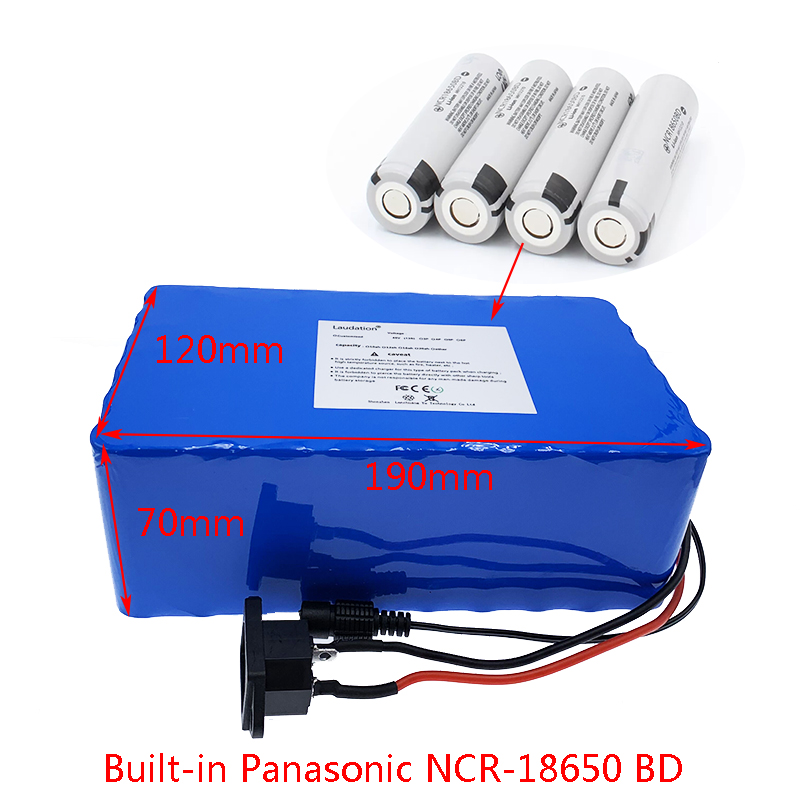

Technical note: 3.7 V 3.2ah / 18650 battery
Cell combination: 6 parallel 10 series (built-in BMS protection, with overcharge, over discharge, short circuit protection)
Width: 100 mm
Height: 70 mm
Length: 190 mm
* Manual measurement will be biased.
Discharge connector: default 14# red and black wire and T plug
Discharge line length (package to connector end): 120mm
Charging connector: 5.5 * 2.1mm DC plug
Charging plug wire length (package to connector end): 120mm
* Manual measurement will be biased.
Number of batteries (parallel * series): 60.
Discharge voltage (V): 30 +/- 1 V.
Charging voltage (V): 42 V.
Rated discharge current (a): 25а
Instantaneous maximum discharge current (a): 45A
Maximum continuous discharge current (A): 25a
Charging connector: 5.5 * 2.1mm DC plug
Charging mode: CC / CV
Standard charging current (A): 2A
Charging time under standard charging current: 4 hours
Maximum continuous current charging (A): 5A
Charging time fast charging: 2 hours
Charging temperature range: 0-45°c
Exhaust temperature range: -20-60 °c
Battery weight: about 3kg
