36V 16ah Electric bicycle battery

  • 36V 16ah battery pack
  • $ 235.0

Battery Parameters:


Battery Model: 36V 16ah

Rated capacity (ah): 16ah

Rated voltage (V): 36 V

Resistance of the source of cells (MΩ): about 40 PTO)

Technical description: 3.7 V 3.2ah / 18650 Cell

Cell combination: 5-parallel 10-series

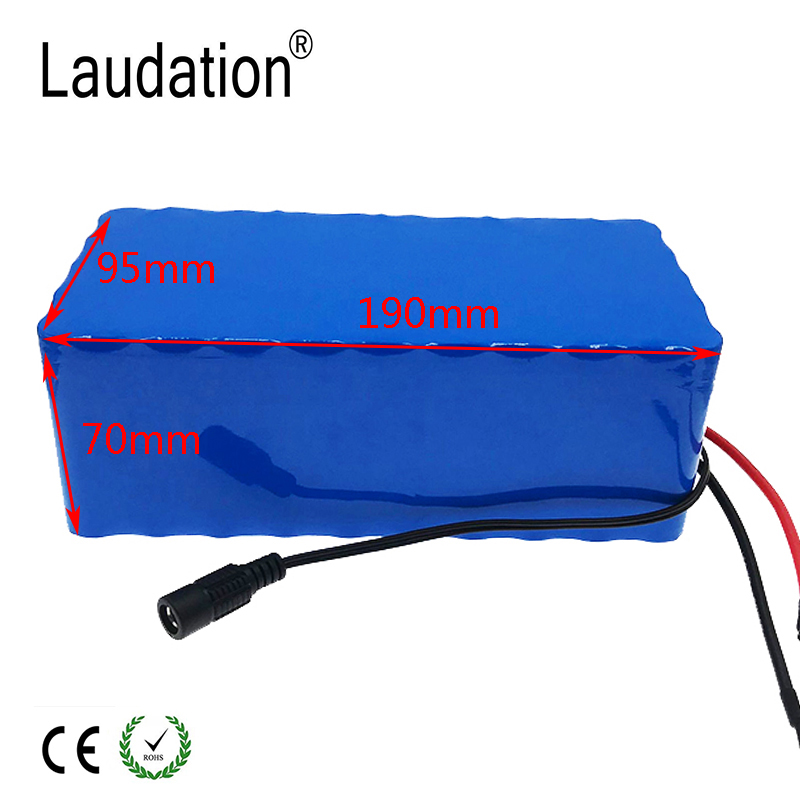

Battery size: 70 *95 * 190mm

Number of cells (parallel * series): 50 pcs.

Discharge voltage (V): 30 +/- 1 V

Charge voltage (V): 42 V

Rated discharge current (a): 15а

Instantaneous maximum discharge current (a): 30A

Maximum Continuous Discharge Current (A): 15a

Charge mode: CC / CV

Standard charge current (A): 2A

Charging time under Standard charge current: 4 h

Maximum Continuous Current Charge (A): 5A

Charging time with fast current charging: 2 h

Charge temperature range: 0-45 ° c

Range of discharge temperature: -20-60 ° c

Battery weight about: 2.5kgs
