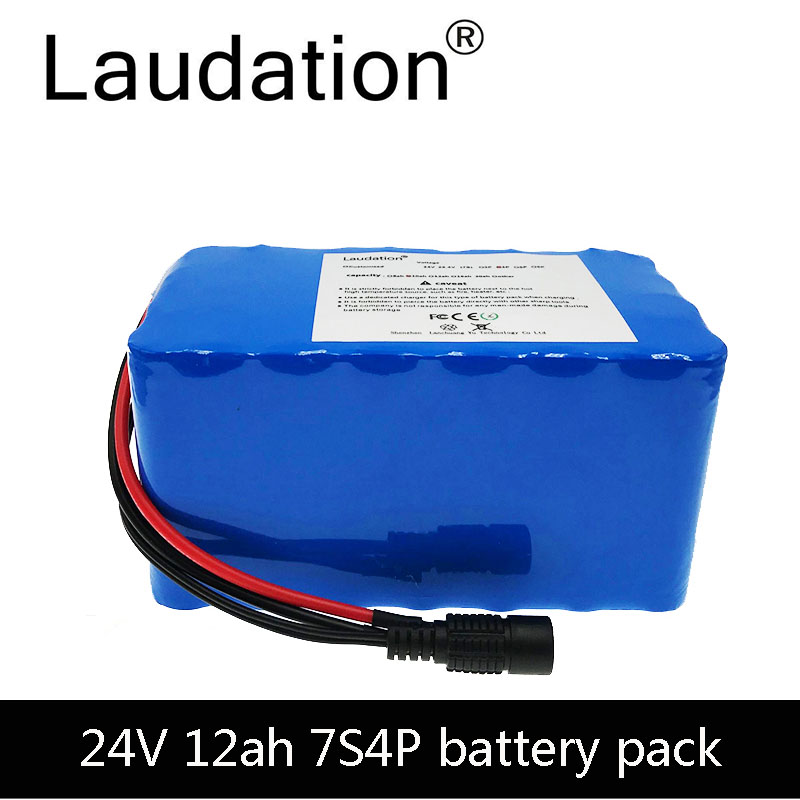

- Battery Model 24V12Ah
- Rated capacity (ah) 12.8ah
- Rated voltage (V) 24 V
- Discharge voltage (V) 20 +/- 1 V
- Charge voltage (V) 29.4 V
- Rated discharge current (a) 15а
- Instantaneous maximum discharge current (a) 36a
- Maximum Continuous Discharge Current (a) 18A
- The maximum constant charge current (a) 5A
- Charge mode CC / CV
- The standard charge current (a) 2A
- Charging time under Standard charge current (h) 6
- Fast charge current (a) 3A
- Charging time under fast charging current 3
- Charge temperature range-20-60 ° C
- Temperature range of discharge-20-60 ° C
- Battery size 130 * 85 * 70 mm (Can be customized)
- Battery weight about 1.7 kg
- Note: photos are for reference only, the final size may make little difference
- Cycles of life: more than 1000 times
1. 1 pcs. 24 V 12ah battery, with built-in Smart bms Protection board
Specification of lithium-ion charger:
1. ac input voltage: 100-240 V.
2. charge Voltage: 29.4volts.
3. Charge current: 2 amps.
4. ac plug charger: EU / US standard you can choose.
