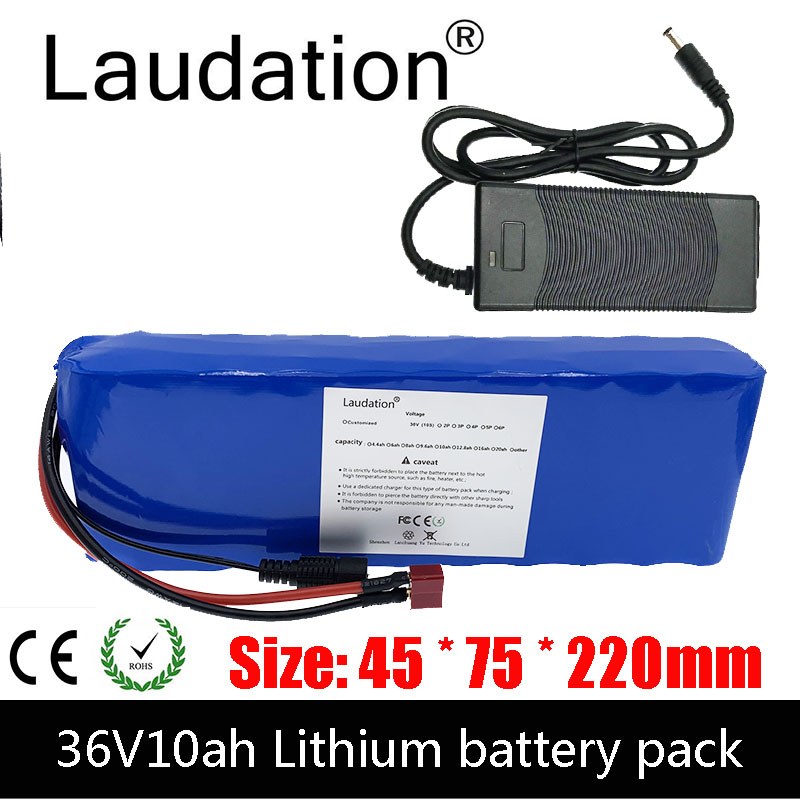

Parts included:
1. 36 V 10ah lithium battery, built in 15a BMS.
2.42V 2A charger
Battery Parameters:
Battery Model: 36V 10ah
Rated capacity (ah): 10ah
Rated voltage (V): 36 V
Resistance of the source of cells (MOmega): about 20 PTO)
Technical description: 3.7 V 5000mah / 21700 Cell
Cell combination: 2-parallel 10-series

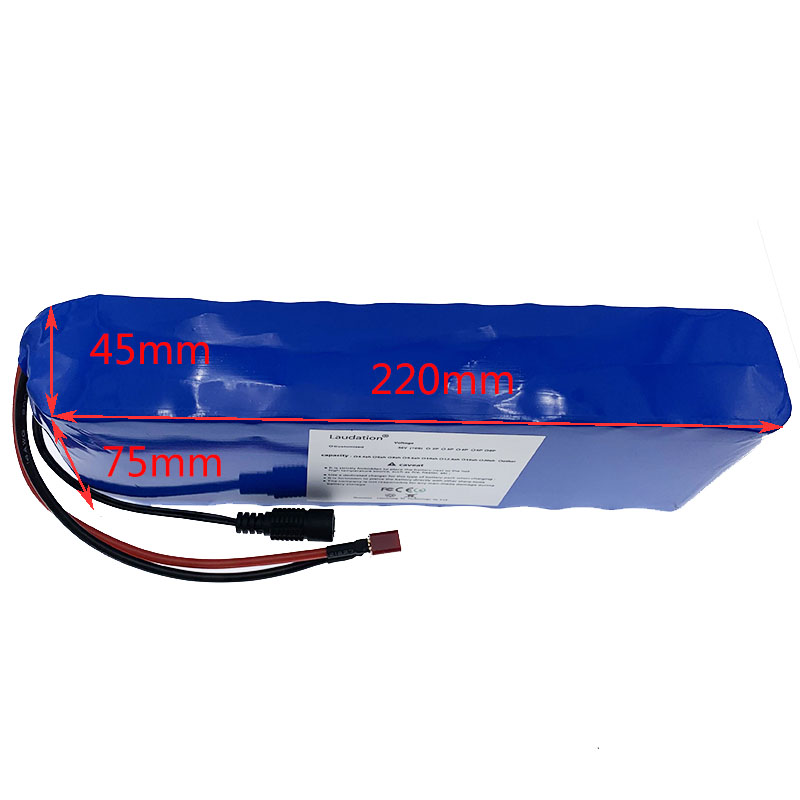

Battery size: 45*75*220mm
Number of cells (parallel * series): 20 pcs.
Discharge voltage (V): 30 +/- 1 V
Charge voltage (V): 42 V
Rated discharge current (a): 15а
Instantaneous maximum discharge current (a): 30A
Maximum Continuous Discharge Current (A): 15a
Charge mode: CC / CV
Standard charge current (A): 2A
Charging time under Standard charge current: 4 h
Maximum Continuous Current Charge (A): 5A
Charging time with fast current charging: 2 h
Charge temperature range: 0-45 deg c
Range of discharge temperature: -20-60 deg c
Battery weight about: 1.5kg
The life cycle:
More than 800 times, capacity and performance will decrease as the number of cycles increases.
application:
Electric bicycles, scooters, etc.
If you must contact us for delivery.
Finished products are shipped within 72 hours by default and custom products are delivered during the delivery period.
Delivery service providers: PostNL, ePacket, Bpost, CDEK, etc.
Use a high quality feed based on the shipping address.
If you want to get the goods faster, please contact customer service through UPS, DHL, FedEx, etc. to understand the express channel.
Shipping list:
1 battery
1 tracking number
note:
- The weight of the postal registration package is limited to 2 kg. If it exceeds 2 kg, it will be shipped in several packages.
- The price does not include customs fees.
