24V 20AH

  • 24V battery
  • $ 175.0

24 V 20ah Lithium Ion Battery 24V 20ah 20000 mAh 25A BMS 250W 24V 350W Battery Pack for Wheelchair Electric Motor Kit Electric Power + 2A Charger + Free Shipping

We provide all kinds of lithium batteries, oem, any questions, please contact us!

24V 20ah lithium-ion battery with PVC case, Built-in BMS, high quality charger.

Specifications:

  • Battery Model 24V20Ah
  • Rated capacity (ah) 20ah
  • Rated voltage (V) 24 V
  • Discharge voltage (V) 20 +/- 1 V
  • Charge voltage (V) 29.4 V
  • Rated discharge current (a) 25а
  • Instantaneous maximum discharge current (a) 60a
  • Maximum Continuous Discharge Current (a) 25A
  • The maximum constant charge current (a) 5A
  • Charge mode CC / CV
  • The standard charge current (a) 2A
  • Charging time under Standard charge current (h) 6
  • Fast charge current (a) 3A
  • Charging time under fast charging current 3
  • Charge temperature range-20-60 ° C
  • Temperature range of discharge-20-60 ° C
  • Battery size 130 * 110 * 70 mm  (Can be customized)
  • Battery weight about 2kg
  • Note: photos are for reference only, the final size may make little difference
  • Cycles of life: more than 1000 times

Package Contents:

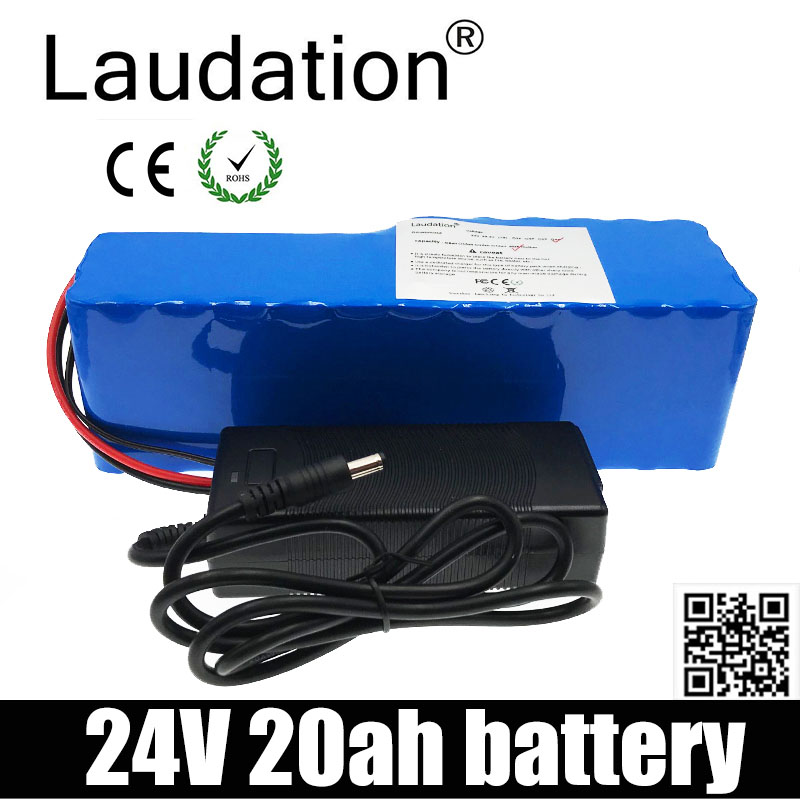

1. 1 pcs. 24 V 20ah battery, with built-in Smart bms Protection board
2.1 pcs. 29.4V 2A lithium-ion battery charger.

Specification of lithium-ion charger:
1. ac input voltage: 100-240 V.
2. charge Voltage: 29.4volts.
3. Charge current: 2 amps.
4. ac plug charger: EU / US standard you can choose.
